The testing partner of choice for global automakers.
We provide customized testing services for future mobility.

Electronic devices installed in vehicles are becoming increasingly sophisticated by the day, and due to the nature of vehicles, they are exposed to diverse and harsh environments. Consequently, malfunctions in electronic components related to vehicle operation can cause accidents and even lead to loss of life. Therefore, testing and evaluation are conducted according to rigorous standards from the initial development stage. HCT supports testing and evaluation in compliance with international standards as well as the stringent EMC/ENV testing standards of each automaker.

OEM Designated Testing Laboratory

Hyundai Motor Company

Kia Motors

Renault Korea

KGM

Stellantis

Main facilities

EMC

EMC solutions dedicated to low-voltage control systems and multimedia electronic components

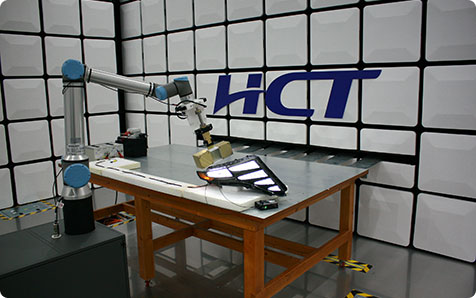

HCT operates an electronics EMC chamber specialized in steering, ECUs, lamps, and multimedia electronic components.

• Test conducted using a self-developed monitoring system
• Establishment of test automation using robotic arms
• Capable of establishing and supporting various test facilities for Volvo, Volkswagen, Stellantis, etc.

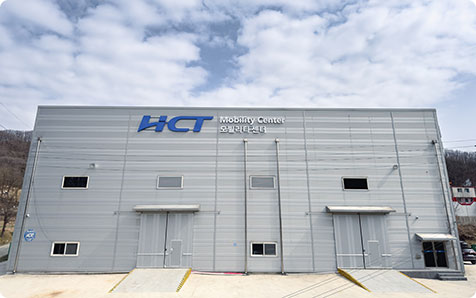

Mobility Center Building Facilities - Battery EMC Chamber/High-voltage Component Test Chamber

Operation of EMC chambers dedicated to electric vehicle batteries & high-voltage components

HCT has established and is operating a dedicated EMC chamber specialized in testing EV batteries, charging devices, and high-voltage electrical components.

• (3.2 * 3.5) m Large Table and Sample Transport Forklift for Large/Heavy Samples
• Up to 300 kW charge/discharge simulator for battery and high-voltage/high-current electrical component loads
• Cooling water supply device for cooling high-voltage electrical components
• Battery fire response equipment such as flame-retardant ferrite absorbers, fire detectors, dust collectors, and brine tanks

Environmental Reliability

Vibration test room

Durability Test Lab

Environmental Testing Laboratory

Learn more about environmental reliability

Insulation durability
(Harsh environment durability)
Test equipment

Large high temperature oven chamber

• 1,000(W) x 1,000(D) x 1,000(H) mm
• 25 ℃ ~ 280 ℃

Constant temperature and humidity chamber

• 1,100(W) x 1,000(D) x 1,000(H) mm
• -75 ℃ ~ 180 ℃, (10 ~ 98)%RH

Vibration tester

• 1,000(W) x 1,000(D) mm
• 3 Hz ~ 2 kHz
• Test Wave : Sine, Random, Shock

Electrical/Insulating Properties
Test equipment

Bidirectional Programmable Power Supply

• Insulation testing of motor windings for EVs and inverter drive motors
• Open output: 0.5 kVpeak ~ 5.0 kVpeak
• Count and display the number of spark discharges
• Calculate the number of corona discharges and display the percentage

ELECTRICAL SAFETY ANALYZER

• ACW((50~60)Hz, (0.5~5)kV,
  (0.1~100)mA), DCW((0.5~7.2)kV, 10mA)
• R((25~1000)V, 250MΩ~100GΩ))

Super insulation tester (SM7120)

• Capable of voltage output of 2000V (setting resolution 0.1V)
• Up to 20000PΩ display

Resistance meter (RM3544)

• 300 mA, 0.000 mΩ ~ 3.5 MΩ
• DC 300 mA ~ DC 500 mA

Status of major clients

Hyundai/Kia Motors, RENAULT, KGM, Volkswagen, Tesla, Benz, Volvo, Stellantis, RIVIAN, Toyota, Honda, etc.
